Polyethylene fittings for external networks DescriptionSpecifications

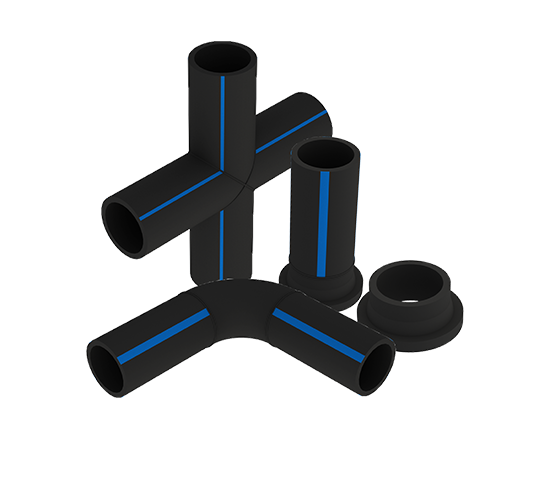

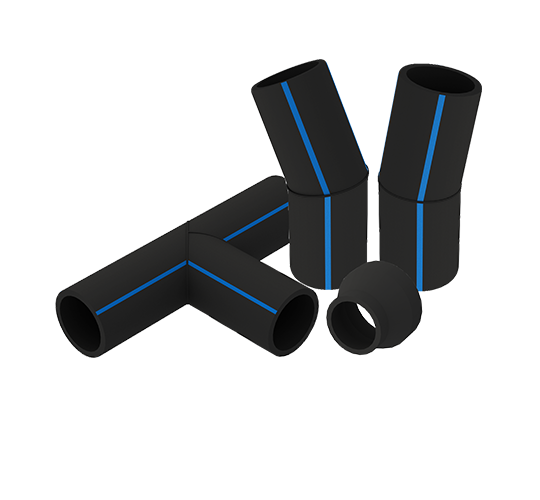

JSC "BPPP" produces a wide range of fittings for the installation of polyethylene pipelines (STB 2244-2012): bends, tees, flanged sleeves and other fittings with an outer diameter from 110 mm to 630 mm. The product range includes both standard polyethylene fittings and custom-made fittings.
Fittings are irreplaceable elements that make it possible to install complex engineering communications of the pressure pipeline.

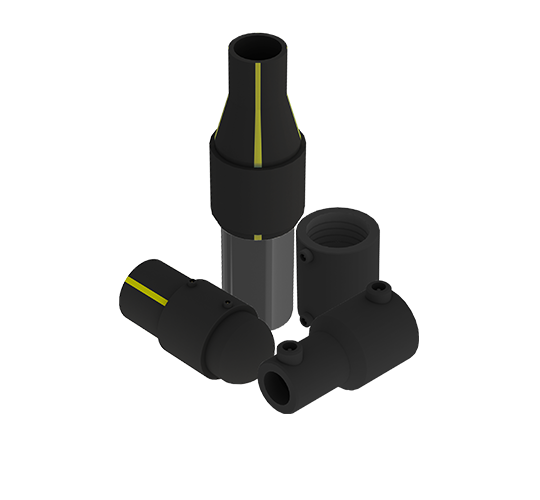

JSC "BPPP" has a possibility of completing with compression fittings (reducing sockets, connecting sleeves), flanged sleeves, branch pipes, T-shaped pipe joints, head plugs).
Classification of products: branch pipes (welded, casted, transitional, flanged), T-shaped pipe joints (welded, casted, transitional, flanged), bushings (casted, extended), cross pieces, polyethylene-steel fixed joints.
Production method: injection molding, welding
Outside diameter: from 110 mm to 630 mm
Types of raw materials used: PE 80, PE 100
Process pressure: from 0.25 MPa to 2.5 MPa
When choosing a pipe size, it is necessary to take into account the effect of external and internal loads that affect the operation of the pipeline in each specific case!
Operating temperature: from 0 oС to 40 oС
Send a completed application by mail truba@bzpi.by
